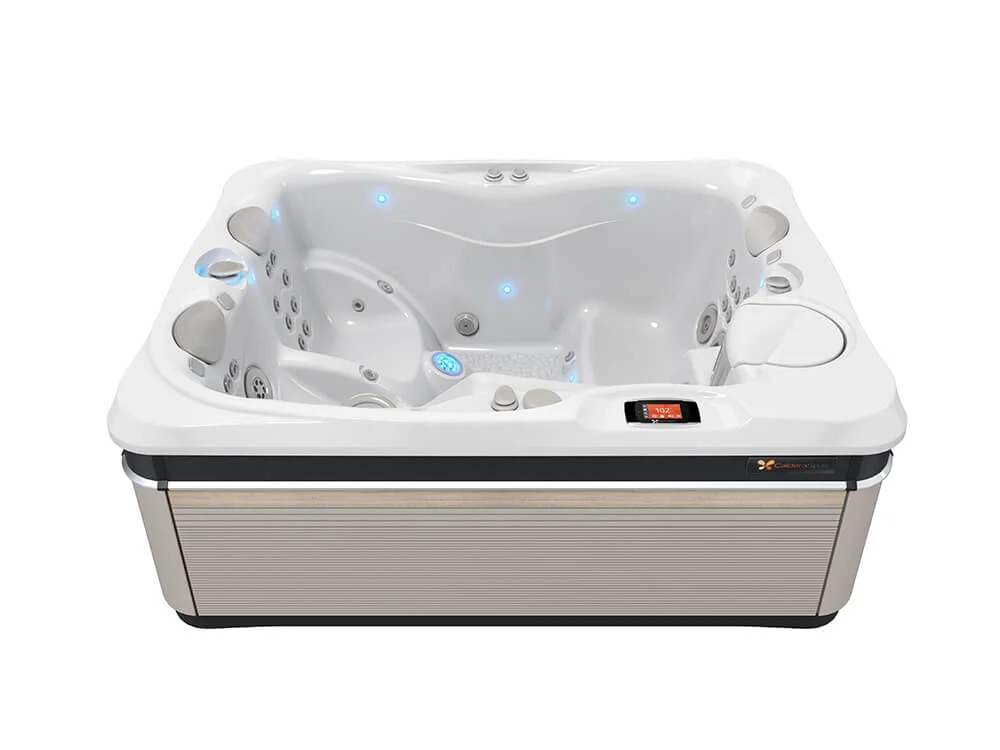

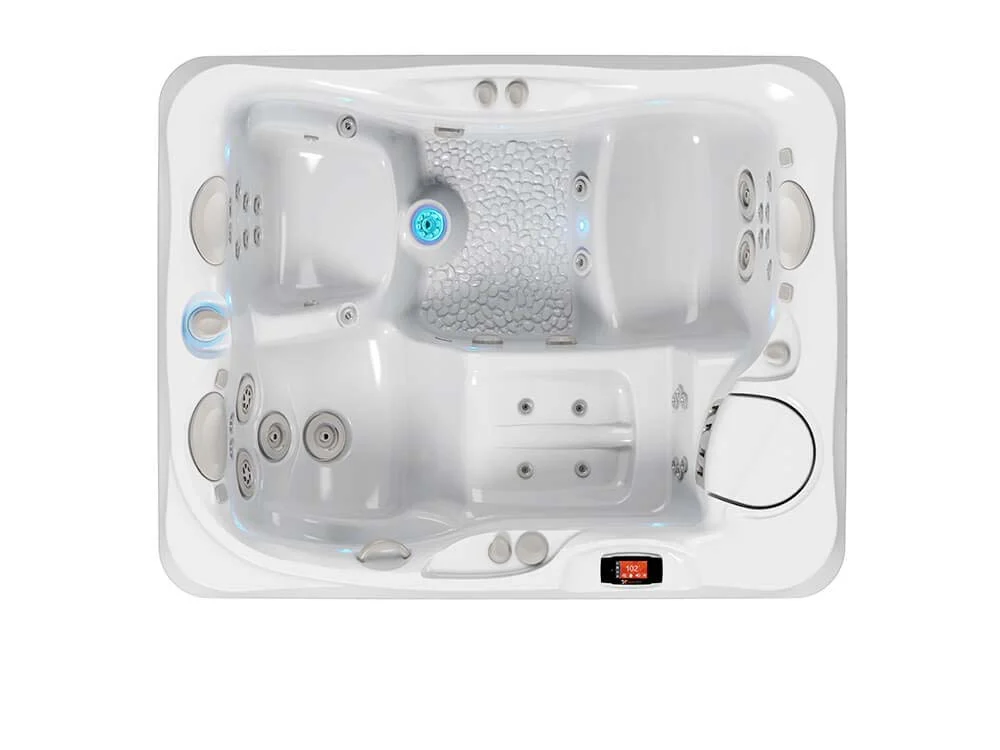

Ravello®

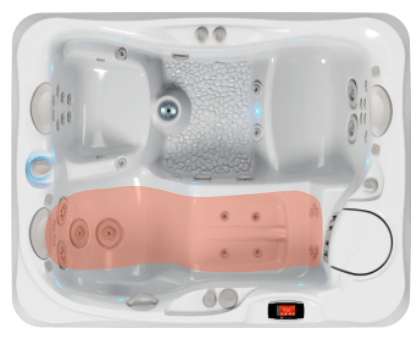

Coming Soon. Compact without compromise. Designed to fit small spaces but with an interior that feels spacious, the Ravello is the perfect 3-person hot tub to provide the transformation you crave. The Ravello delivers the ultimate soaking experience with two powerful ReliaFlo pumps, 39 perfectly positioned jets and the UltraMassage® lounge that soothes muscles from head to toe.

SEATING
3 Adults
DIMENSIONS

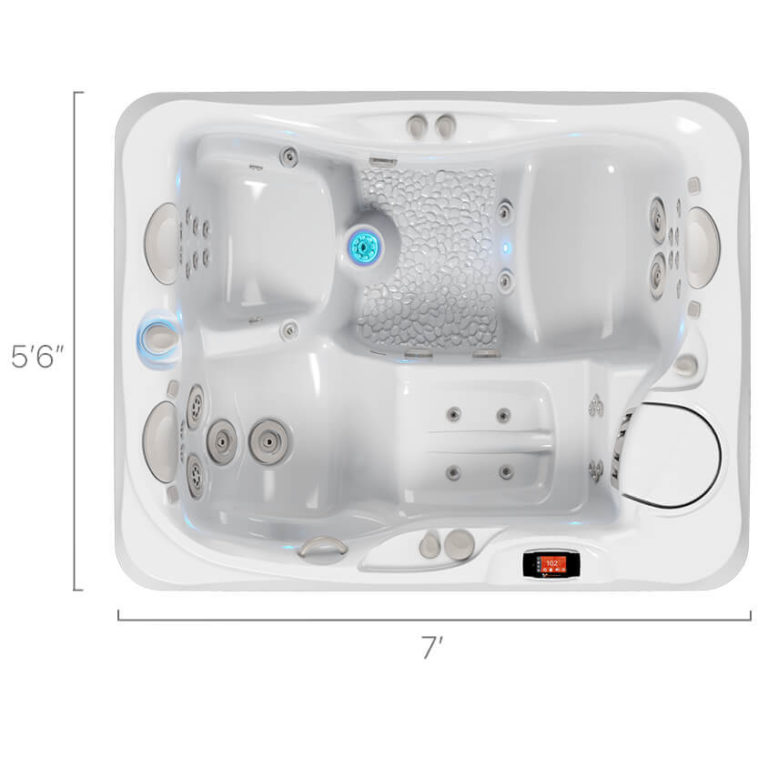

7′ x 5’6″ x 33″
JETS
39
WATER CARE
FreshWater® Salt System Ready

Make It Yours.

CUSTOMIZE YOUR SPA COLORS

Cabinets

Parchment
Ash
Java

Shells

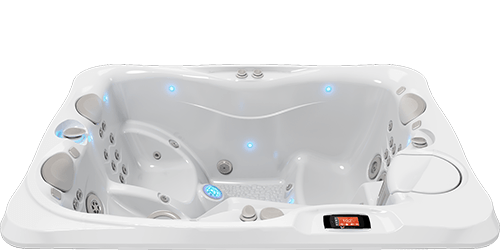

Arctic White

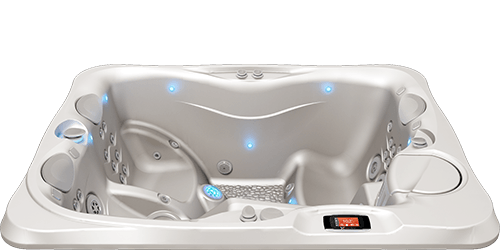

White Pearl

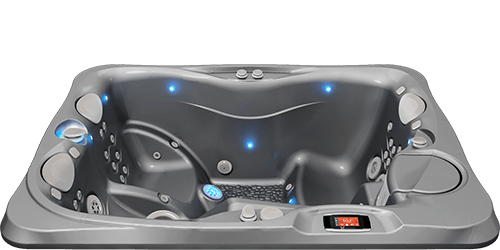

Platinum

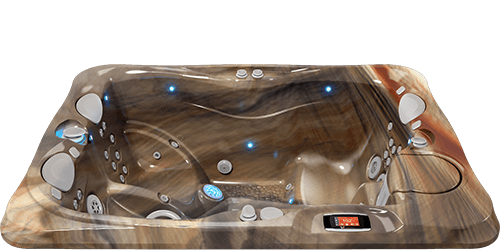

Tuscan Sun

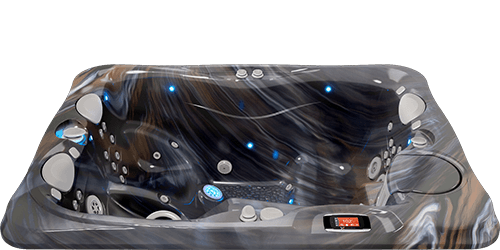

Midnight Canyon

Actual colors and product may differ from on screen representation. Additional charges may apply to particular combinations.

See How It Looks In Your Space

With Vision AR from Caldera® Spas, your perfect spa is just a click away. Download the free app, choose your favorite models, then view them in your own backyard.

Your Massage Your Way.

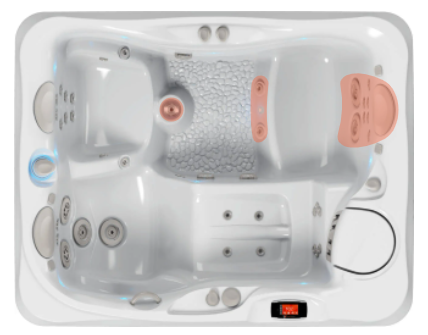

HOT TUB CIRCUIT THERAPY

The Cantabria features more targeted massage seats than any other Caldera spa. As you move from seat to seat in the Cantabria, you’ll experience a full body massage, with jets that focus on your neck, shoulders, upper back, mid back, lower back, hips, thighs, calves, feet and wrists.

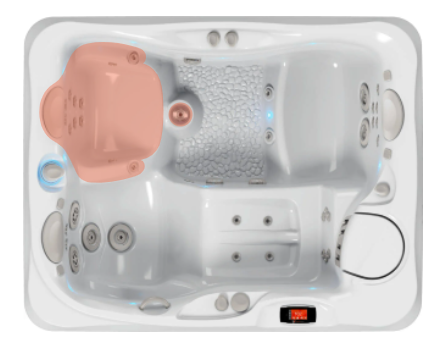

Grab the Best Seat in the House

Features That Transform

FRESHWATER® SALT SYSTEM

Longer lasting, natural-feeling water that won’t irritate eyes or dry out skin.


ECOTECH® PLUS CABINET

Our premium cabinet includes a modern black header, wood grain accent, stainless-steel trim and integrated LED light bar that will complement any backyard aesthetic.

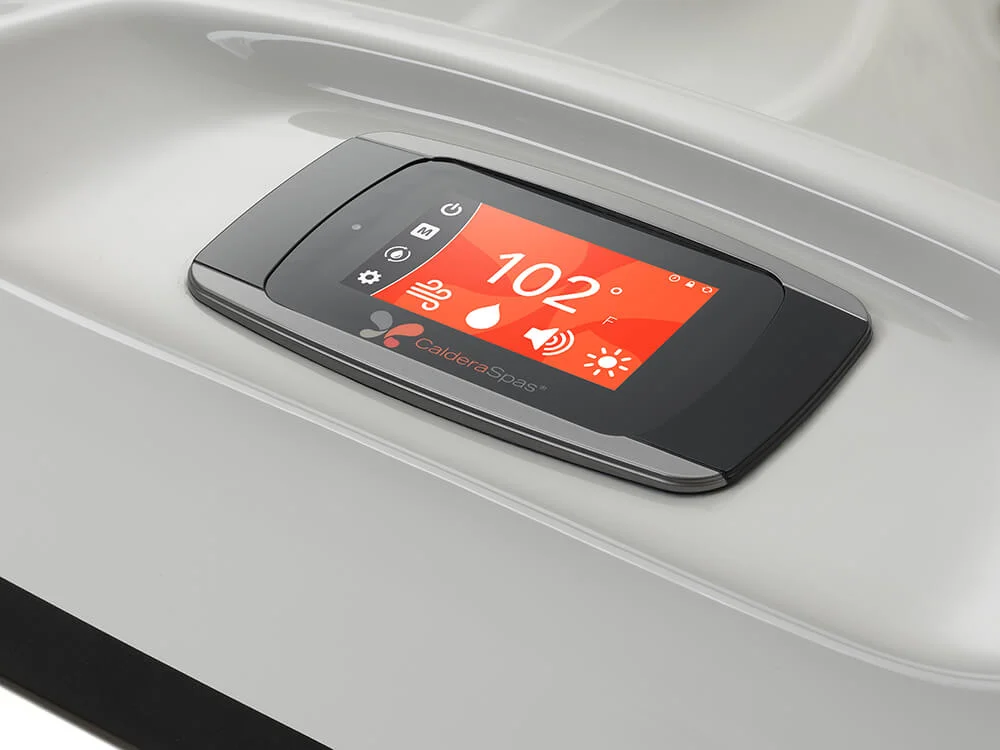

TOUCHSCREEN CONTROL

Adjust your water temperature, jets, and lighting with ease.

Ravello™ Specifications

Seating Capacity3 Adults
Dimensions7' x 5'6" x 33" / 213cm x 168cm x 84cm
Water Capacity230 gallons / 875 liters
Weight (dry)800 lbs. / 365 kg
Weight (filled)3,245 lbs. / 1,480 kg
Jet Count39 Total Jets

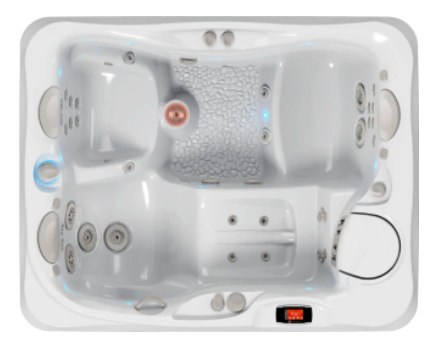

Jets1 Euphoria¨Êjet, 2 OrbiSsage¨Êjets, 4 VersaSsage¨Êjets, 2 Euro-Pulse¨Êjets, 30 Euro Directional jets
Water Care SystemsFreshWater¨ÊSalt System Ready
Ultramasseuse SystemN/A
Jet Pumps2 ReliaFlo¨ÊPumps; 1 Dual-Speed 2.5 HP (5.2BHP) & 1 Single-Speed 2.5HP (5.2 BHP)
Control SystemAdvent¨ÊLCD Touchscreen 230v/50amp, 60Hz, Includes G.F.C.I. protected sub-panel
Circulation PumpEnergyPro¨Êfor quiet continuous filtration
Heater OutputEnergyPro¨ÊTitanium Heater 4,000 Watts 230v
Electrical Requirements230V / 50 amp
Gfci Sub-panelGFCI Sub-panel (50 amp) included
Filter Size75 sq. ft. filter
Ozone System(Optional) Corona Discharge
Water FeatureN/A
Multi-color Led LightingSpaGlo¨ÊMulti-zone LED Lighting with 7 Points-of-Interior Lights & Exterior Light Light Bar
Energy EfficiencyFully-insulated with FiberCor¨Êmaterial, 2 lb. density, CEC-compliant
BrandingDiagnostic Logo Light mounted in Spacer (between shell and cabinet)
Bottom SealABS Base Pan
Insulating Cover3.5Ó to 2.5Ó tapered, 2 lb.-density foam core with hinge seal
Spa Shell OptionsArctic White, White Pearl, Platinum, Tuscan Sun, or Midnight Canyon
Cabinet TypeEcoTech¨ÊPlus
Cabinet & Step ColorsJava, Ash & Parchment
Cover Lifter(Optional) ProLift¨ÊIV, ProLift¨ÊIII, or ProLift¨ÊII
Cover ColorsChocolate, Slate, or Taupe
Cover DesignStandard
Speakers4 Ð 1.5Ó square
Entertainment System(Optional) Wireless Bluetooth¨ÊAudio System
Step Type(Optional) Utopia¨ÊStep in Java, Ash & Parchment
Step ColorsJava, Ash & Parchment
View More Specs Hide More Specs

Hot Tub Essentials

Sound System with Bluetooth® Wireless Technology

Whether you choose to stream music live, or have your own library of downloaded tunes, this entertainment system allows you to conveniently enjoy music from your Bluetooth® enabled device at the spa, using Bluetooth® wireless technology.

Hot Tub Cover Lifters

A hot tub cover lifter is an essential spa accessory that protects your spa, the cover, and your investment. Designed to allow one person to effortlessly remove and replace the cover, a lifter makes it easy for you to be in your spa in seconds.

Hot Tub Steps

We offer color-matched hot tub steps to help you enter and exit your spa with ease.
